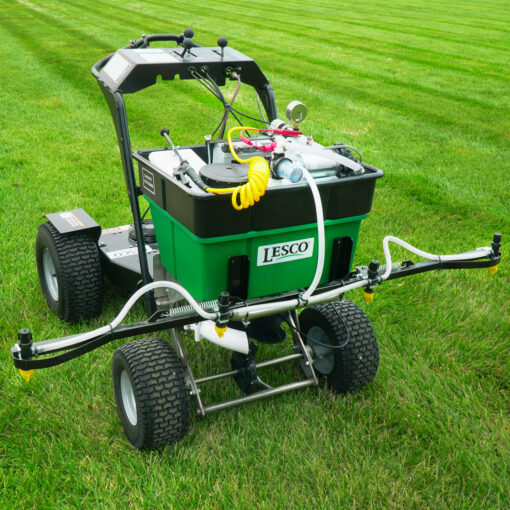

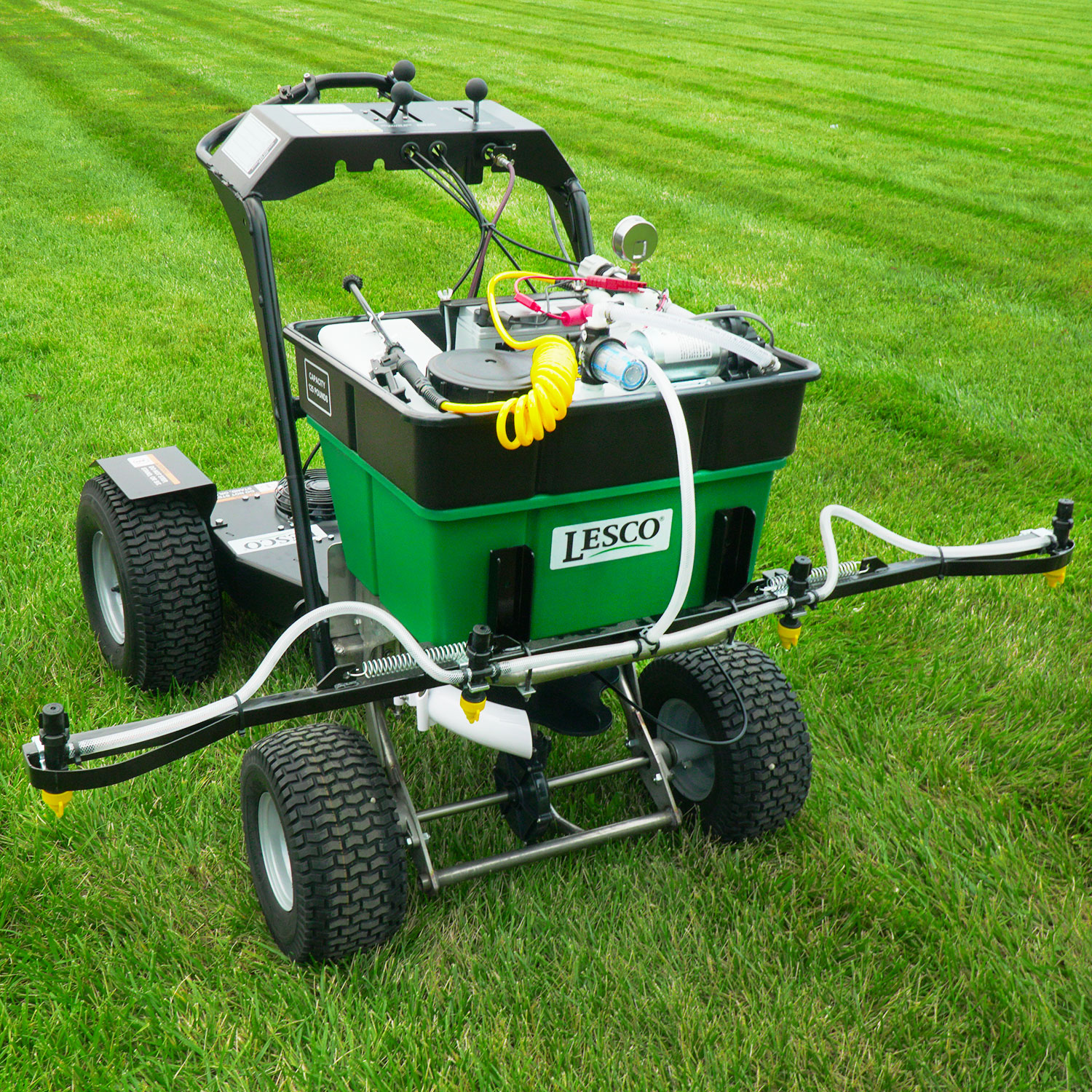

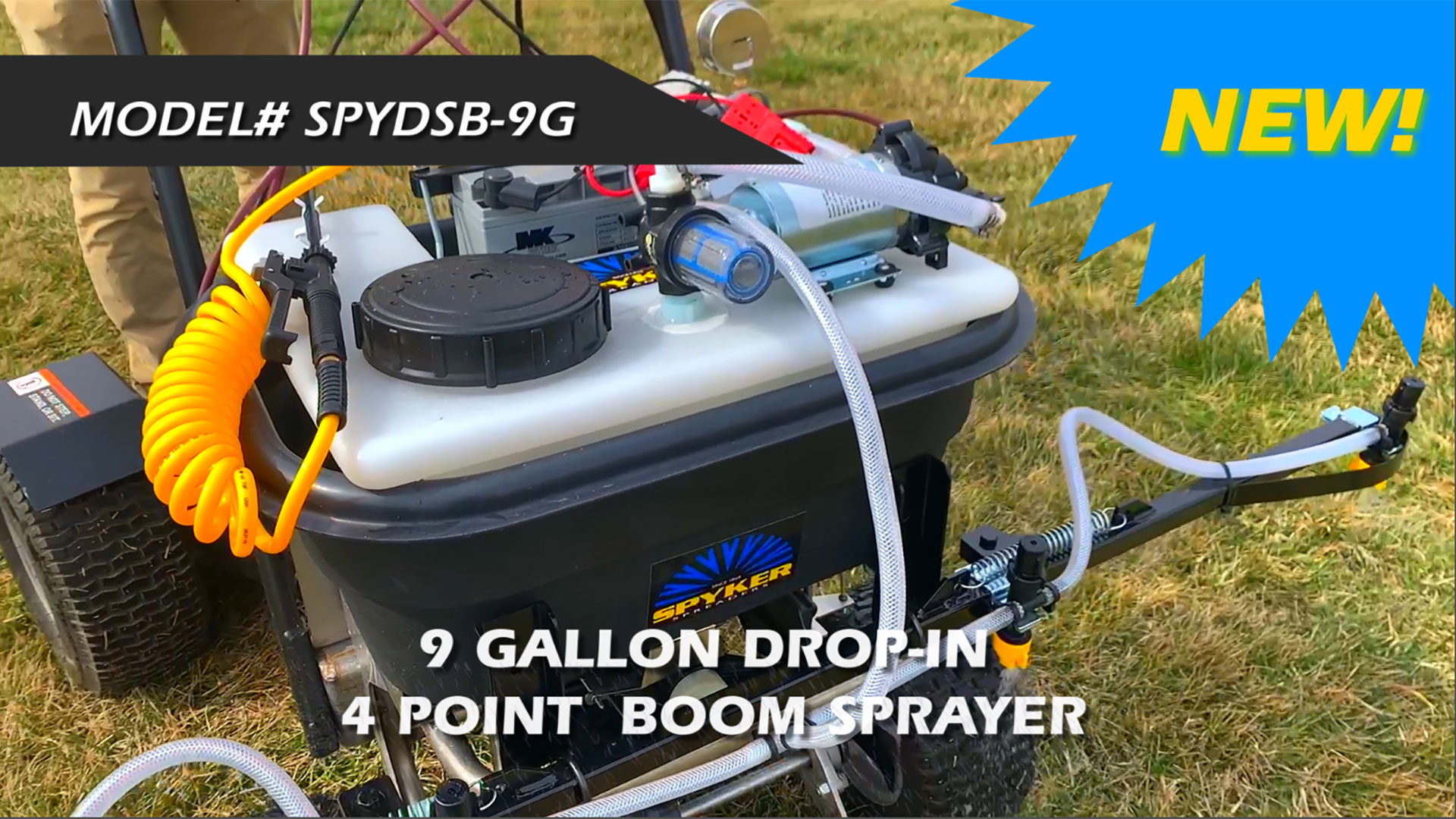

SPYDSB-9G Drop-In Sprayer with Boom

  • Includes 62″ Boom with 80″ spray width for quick coverage
  • Cover up to 30,000 sq. ft per fill
  • Compatible with select models of Spyker & Lesco Spreaders
SKU: SPYDSB-9G MSRP: $1750.00 Categories: ,

Featured Videos

Description

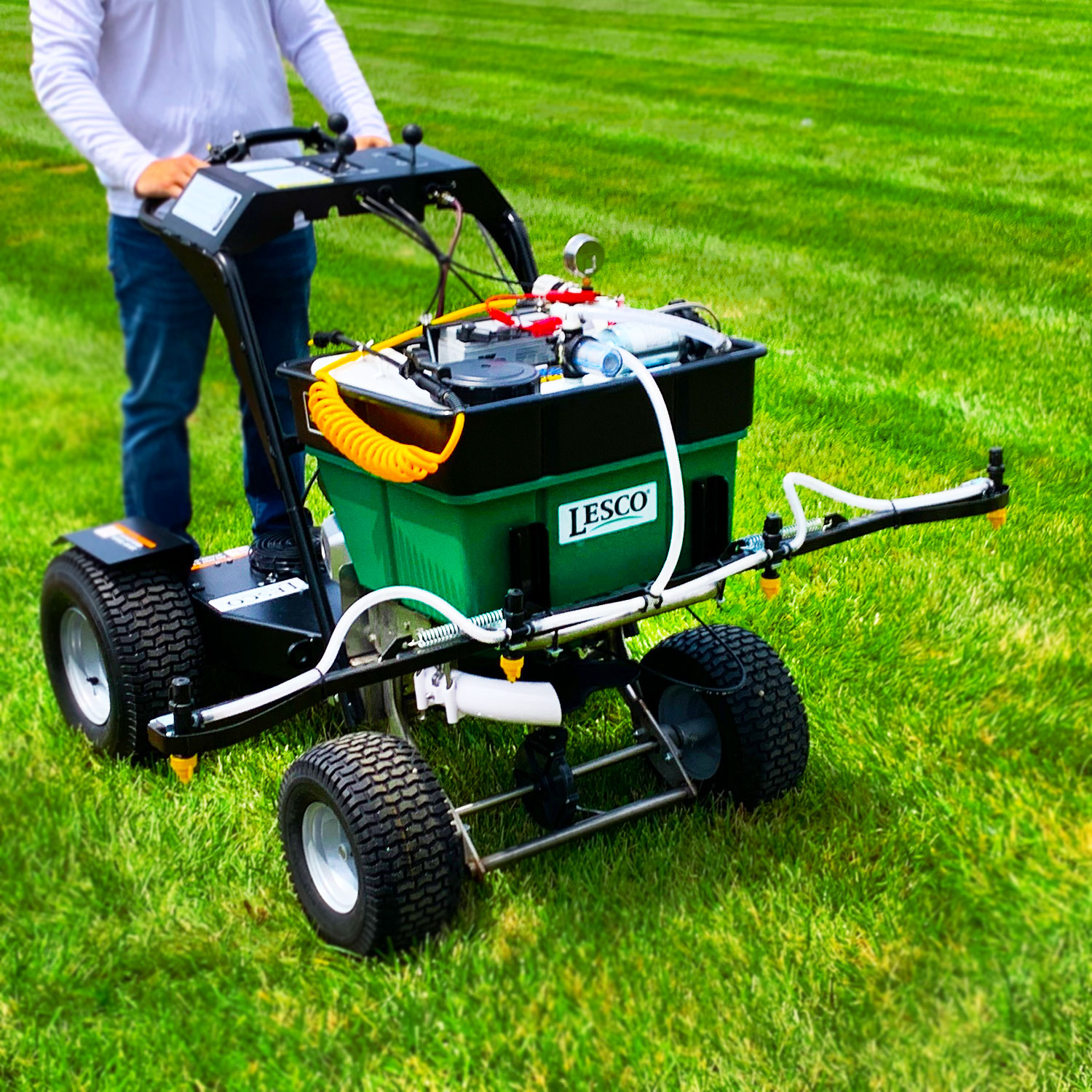

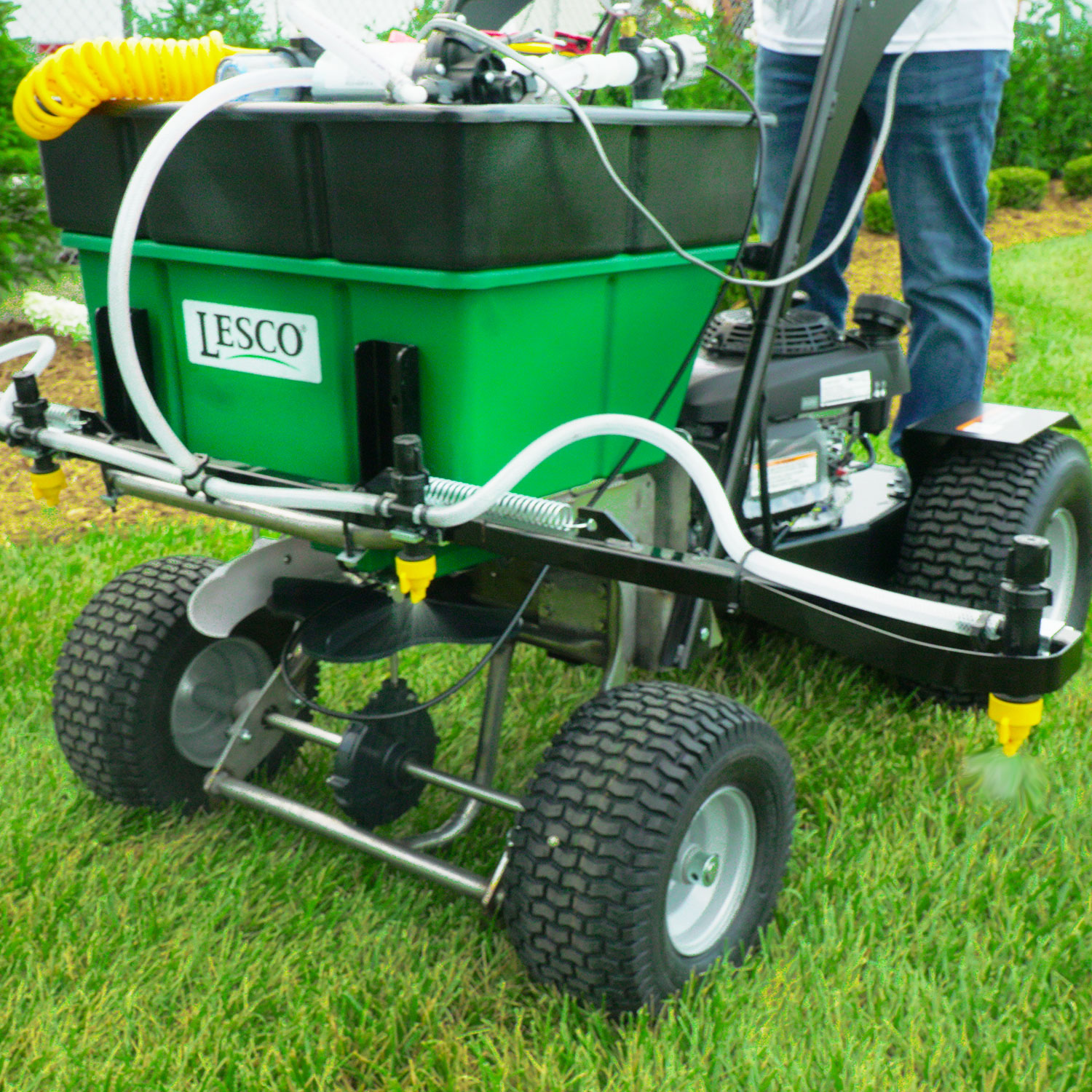

With the SPYDSB-9G, you’ll easily upgrade your Ride-On Spreader to a Sprayer just like that! This 9 Gallon Drop-In Sprayer provides a fast and efficient way to apply all common lawn and garden liquids, including fertilizers, pesticides, insecticides, water, and more.

The SPYDSG-9G is a self-contained drop-in sprayer and features break-away booms with three sections for safe passage through small spaces like garden gates, around retaining walls, or between trees. This sprayer is compatible with Lesco and Spyker Ride-On Spreaders.

The easy-to-reach controls such as a convenient handlebar-mounted on/off switch right from your ride-on spreader. Additionally, this product features a quick set-up out of box, meaning there are no additional batteries or parts required to start spraying.

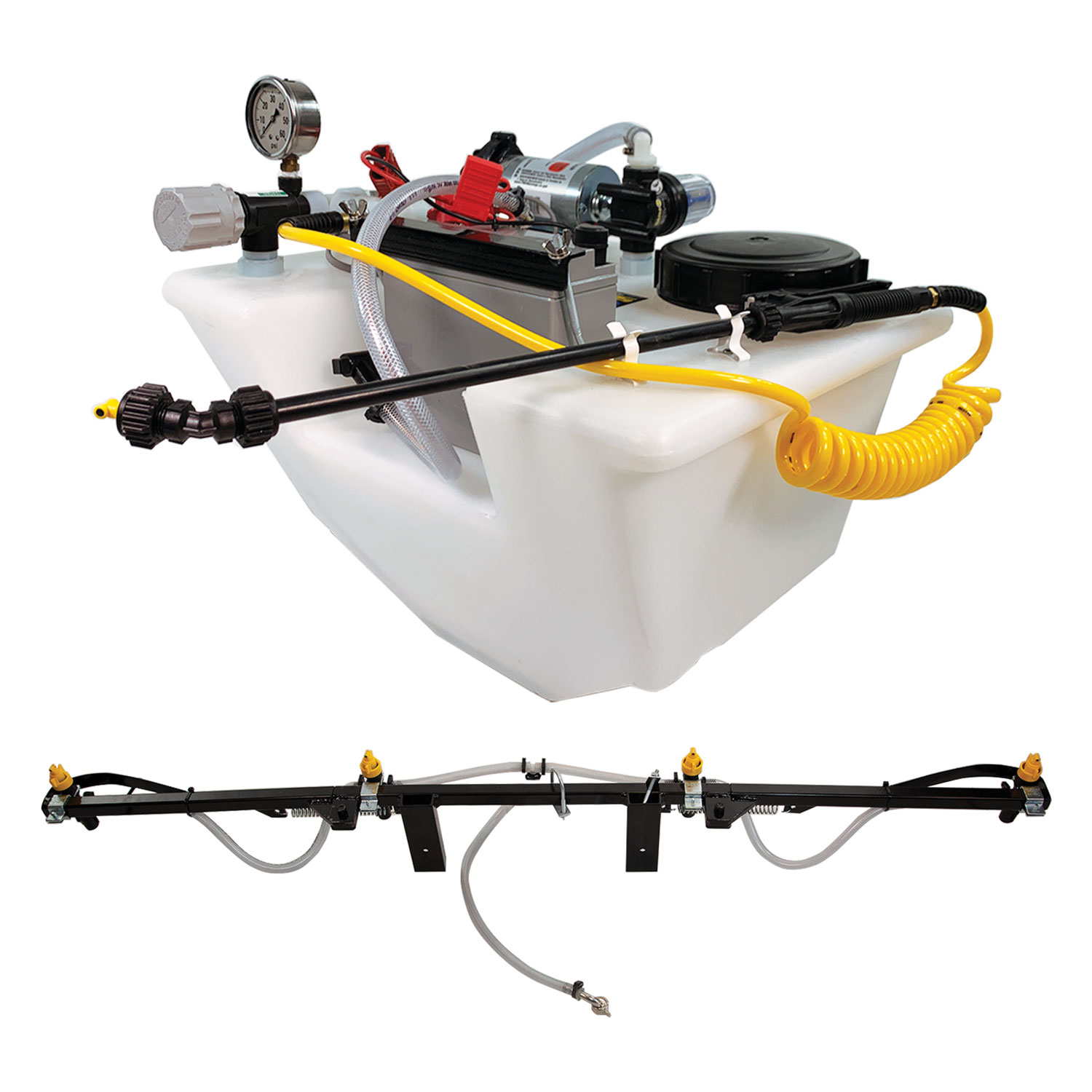

Features

  • Quick Set-Up Out of the Box: No additional batteries or parts required to start spraying.
  • Durable, Never-Rust Poly Tank: 9 gallon capacity with 5" lid for easy filling.
  • Adjustable 0-60 PSI regulator with Pressure Gauge: Provides versatility for different liquids and job requirements.

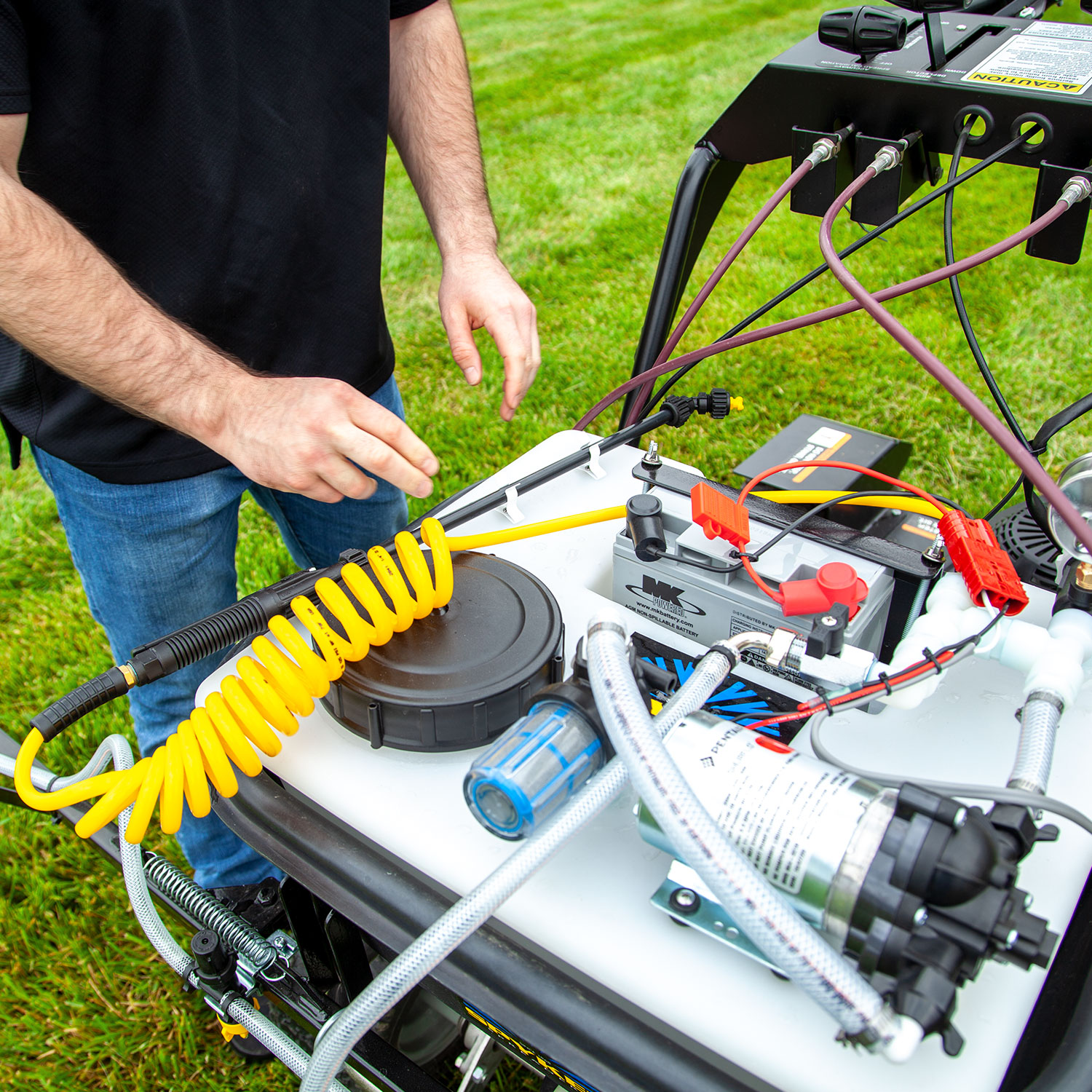

  • 12-volt Shurflo Diaphragm Pump: Features 3.0 GPM for higher flow rate as needed.
  • Easy-to-Reach Controls: Includes convenient handlebar-mounded on/off toggle switch.

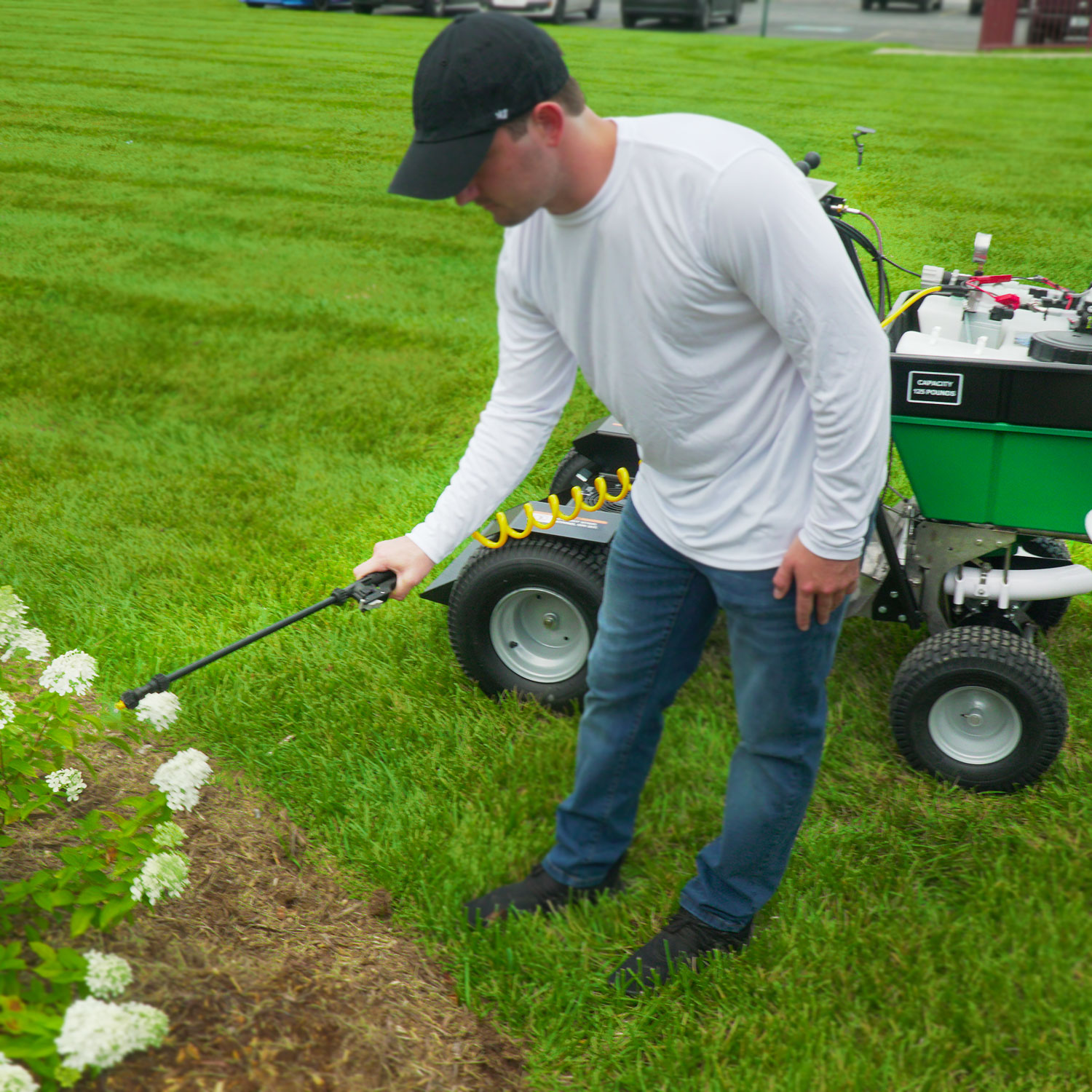

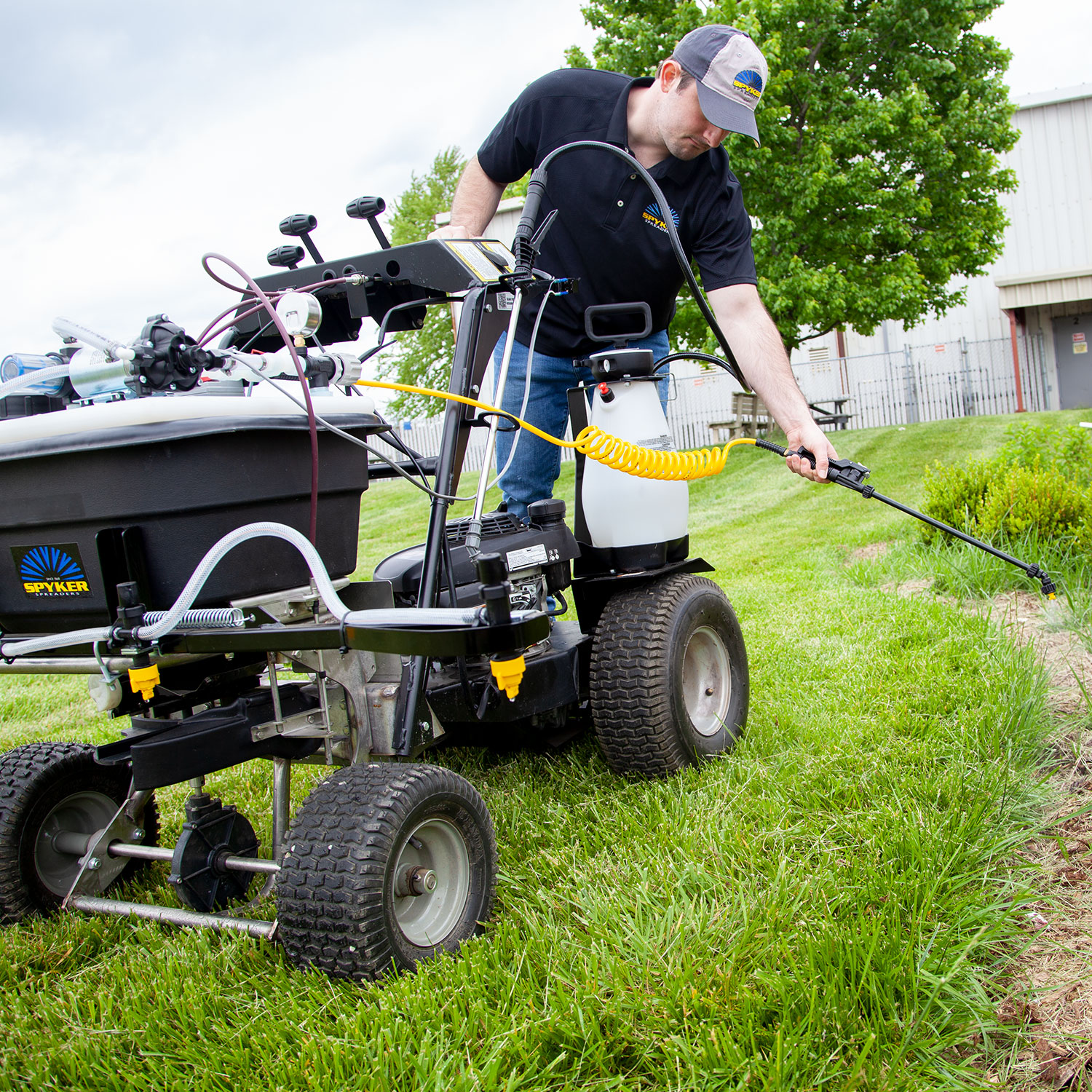

  • 15" Poly Wand: Lightweight wand with an 8-foot self-retracting hose helps cover hard-to-reach areas.

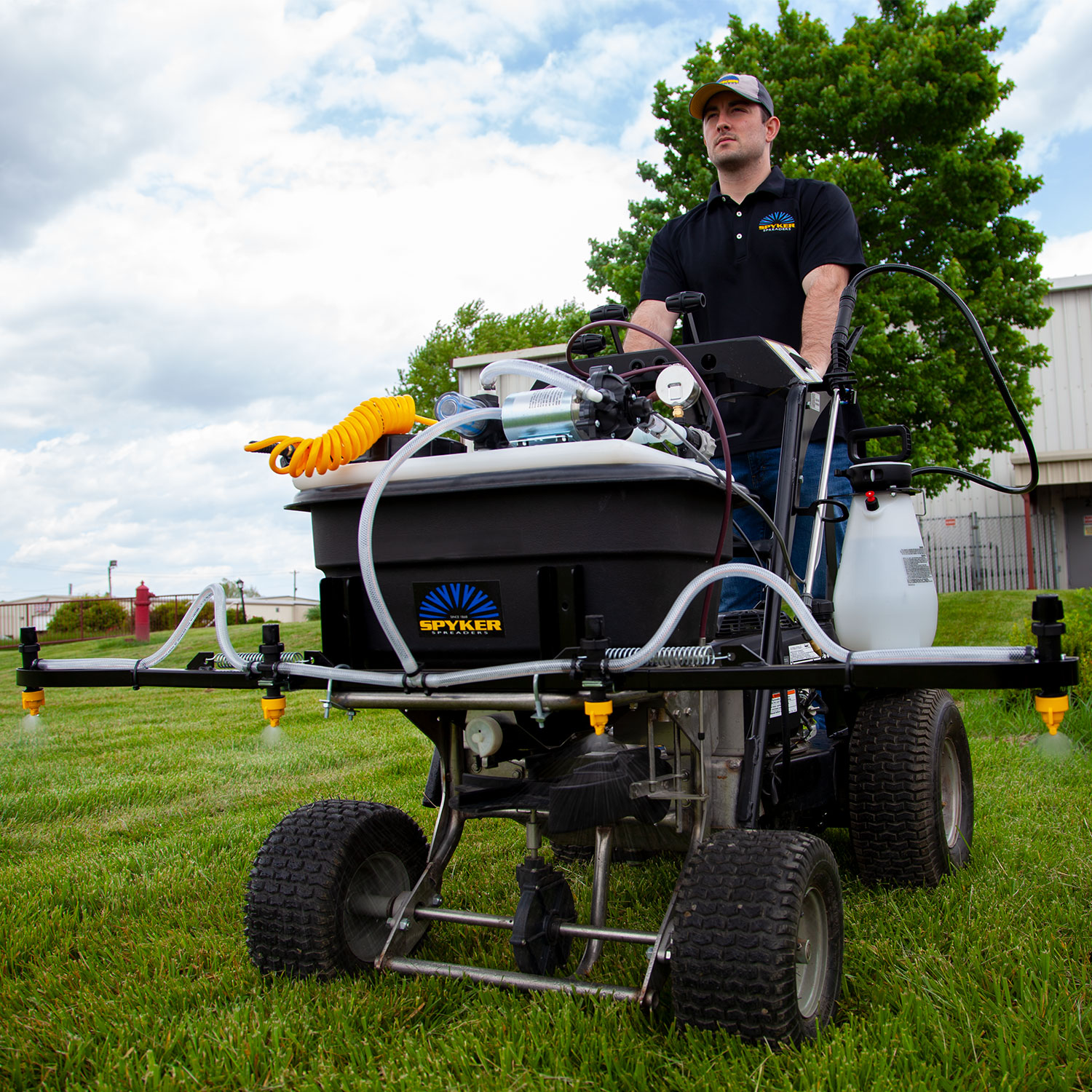

  • 62" Boom Width: Provides an effective spray width of 80" to get jobs done faster with less passes needed.

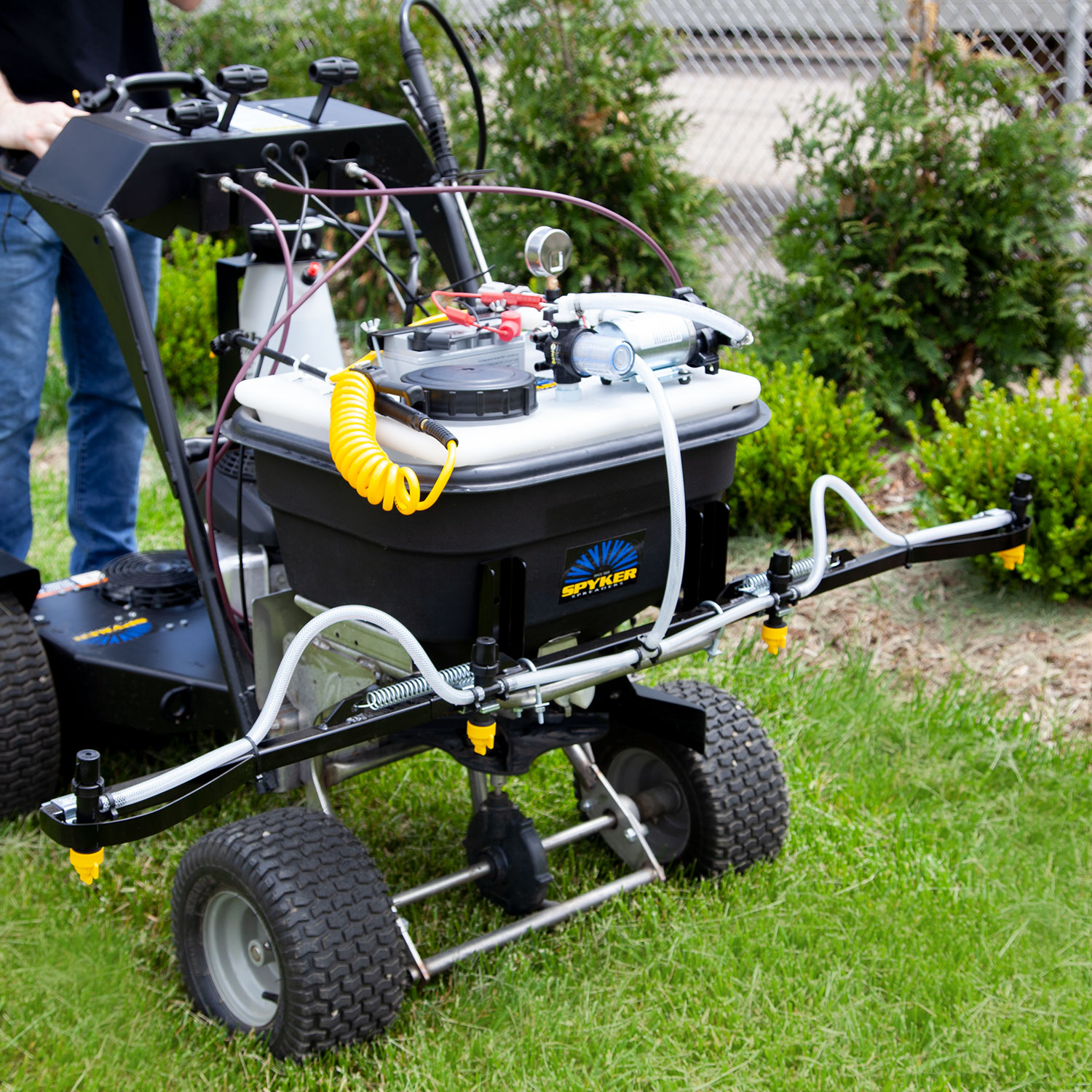

  • Breakaway Booms with 3 Sections: For safe passage through smaller spaces, such as garden gates, around retaining walls, or between trees.
  • Compatible with the Lesco 101186, Lesco 105821, Lesco HPS Chariot, Spyker S100-12011
  • Battery comes included. Charger is not included, but can be purchased separately. Additional accessories also available include a 12V truck Charger, Mains 12V Charger, and Truck Stand.

Specs

Fits Brands

Spyker, Lesco
Fits Models

Lesco 101186, Lesco 105821, Lesco HPS Chariot, Spyker S100-12011
Primary Material

Poly
Product Height (in)

30.5
Product Length (in)

28
Product Width (in)

21.75
Warranty

1 Year
Spray Materials

Herbicides, Insecticides, Liquid Fertilizers

Reviews

There are no reviews yet.

Be the first to review “SPYDSB-9G Drop-In Sprayer with Boom”

  • I am having trouble with the manuals' assembly instructions, is there an assembly video?

    Yes, Spyker offers assembly help in the form of manuals, videos, and over the phone assistance. To watch the assembly video, please select your model’s product page and click the red assembly box or visit our YouTube channel.

  • My pump runs but is not pumping out water. What can I do to troubleshoot?

    There are a few steps that can be taken to test your pump/motor. To test that your pump/motor is not the issue you may jump the harness. When doing so, you may check to see if it has suction. Do not leave anything on the suction end of the pump as this can cause the pump to burn out. Additionally, check the strainer for blockage.

  • How should I store this unit when not in use?

    First, promptly and thoroughly clean the unit. In three separate rinses -using a minimum of 2 gallons (7.6 L) for each rinse. Second, please use the cleaners and neutralizers as recommended for the last rinse.

  • What type of pump is on the sprayer?

    This sprayer uses a 12 Volt Flojet diaphragm pump. 5.0 GPM

  • What is the length of the wand chord?

    The full length of the wand is 15″ with 8-foot self-retracting hose.

  • Can you use this unit for hydroseeding?

    No, this unit is not capable of use for hydroseeding.

  • Can I control which nozzles I use on that boom? Is it possible to use one of the two nozzles

    Yes, each nozzle can be turned off individually.

  • Can I run the boom and the wand at the same time?

    No, it is not possible to run the boom and the wand at the same time.

  • Does Spyker make a boom for other sprayers?

    No, at this time, Spyker does not make a boom for other sprayers.
